China Z3050 Best Price Automatic Feed Metal Mechanical Radial Drilling Machine For Metal Drill

  • 1 - 1 Sets
    $9,880.00
  • >=2 Sets
    $9,870.00
Drilling Capacity:
50mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Samples:
$19,999.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
type:
Radial Drilling Machine
Range of Spindle Speed(r.p.m):
25 - 2000
CNC or Not:
Normal
Drilling Speed:
25-2000rpm
Place of Origin:
Shandong, China
Brand Name:
BORUI
Model Number:
Z3050*16
Voltage:
Customer's Requirement
Dimension(L*W*H):
2053X820X2483 mm
Certification:
ISO9001
Power (kW):
4
Weight (KG):
3600 KG
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Automatic
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria
Showroom Location:
None
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Energy & Mining
Name:
China Radial Drilling Machine
Type:
Radial Drilling Mahine
Color:
Customizable
Machine type:
Drilling Equipment
Function:
Drillig
Product name:
Radial Drilling Machine
Spindle travel:
330mm
Usage:
Rail Drilling Machine
Weight:
3500kg
Keyword:
Radial Drilling Machine Z3050x16
Max. Drilling Dia. (mm):
50 mm
Product Certification certification
CE Certified.
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Type of package: Plywood case
Port
QINGDAO PORT SHANGHAI PORT
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Z3050 X16/1 Hydraulic radial drilling machine
Product Description

INTRODUCTION:

(1) the use of hydraulic pre-selected speed, can save auxiliary time.
(2) the spindle is positive, reverse, brake, speed, neutral five movements, with a hand
Handle control, control focus, light and smart.

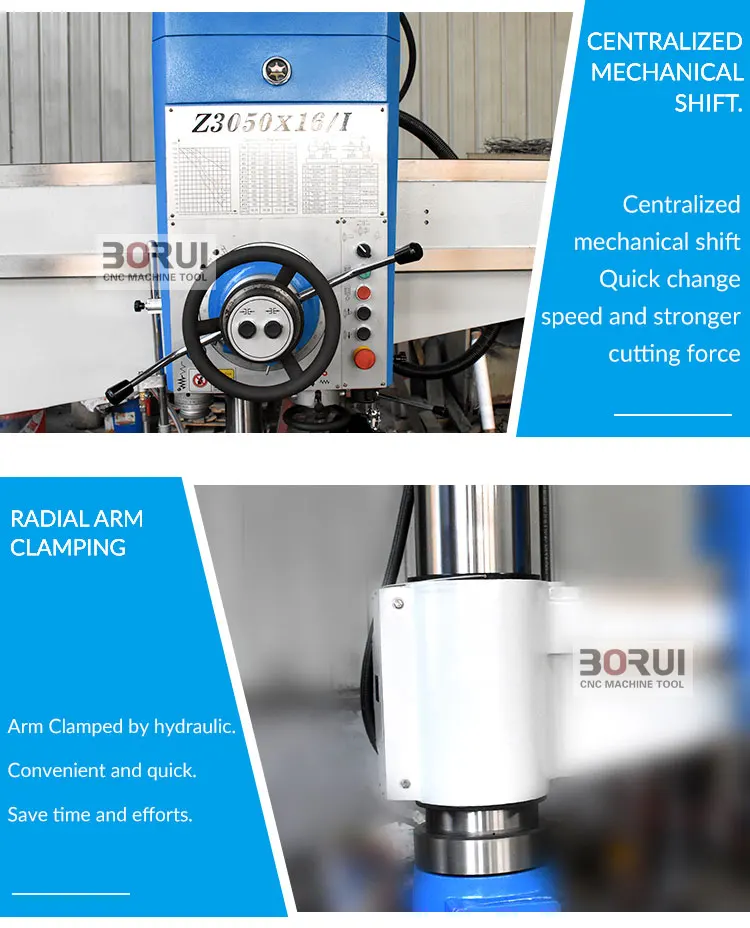

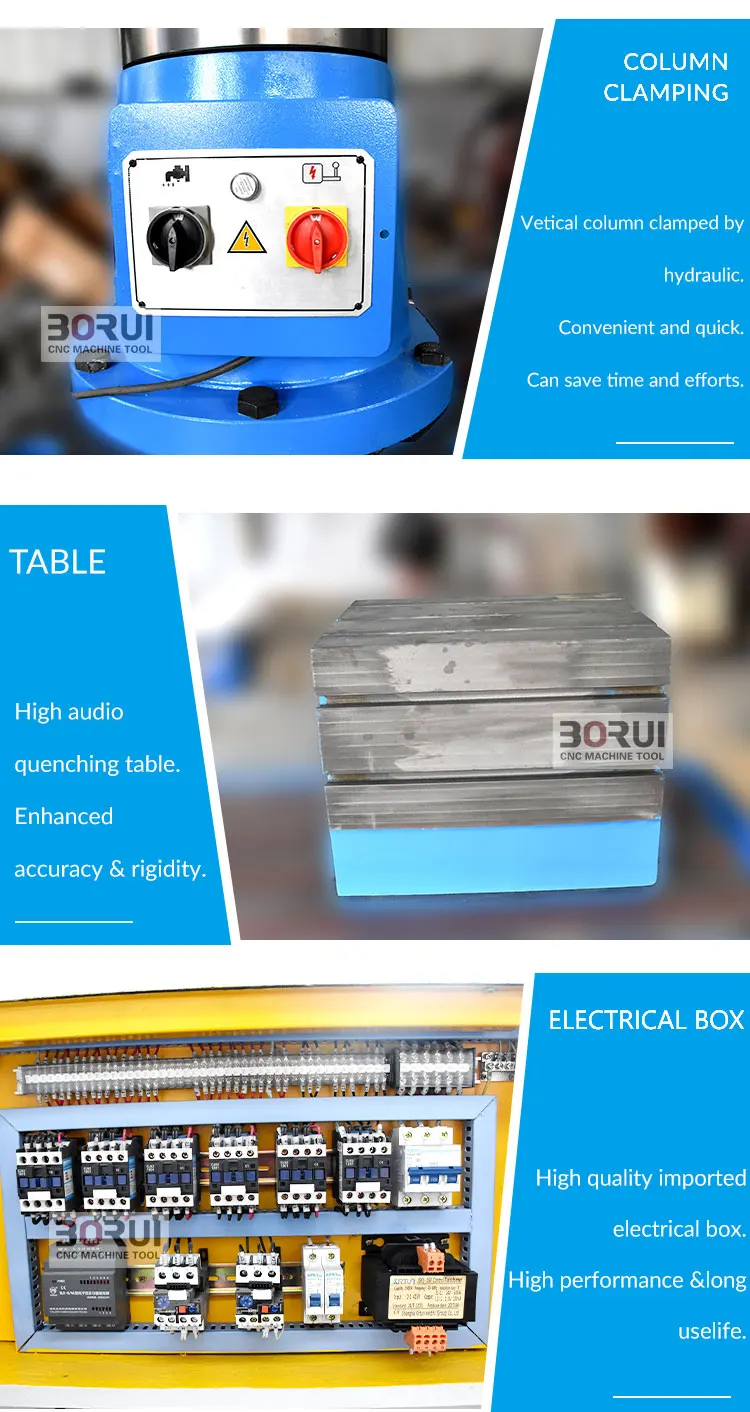

(3) machine tool spindle box, column, rocker clamping are hydraulic clamping mechanism.
(4) the main rail surface are quenching treatment, can extend the machine life.
(5) a perfect safety protection device.
(6) electrical system safe and reliable, in line with national standards and international standards
The main performance characteristics:
Hydraulic transmission
Hydraulic clamping
Hydraulic pre-selection
electricity machinery double insurance

Product main technical parameters
Model
Z3050X16/1
Max.Drilling capacity
50mm
Distance from spindle axis to column (min/max)
350mm-1600mm
Column Diameter
350mm
Spindle taper
MT5
Spindle travel
315mm
Spindle speeds (range)
25-2000
Spindle speeds (number)
16
Spindle feeds (range)
0.04-3.2r/min
Spindle feeds (number)
16
Distance between spindle & working surface of base (min/max)
320mm-1220mm
Worktable dimension
630mm×500mm×500mm
Base dimension
2400mm×1000mm×200mm
Overall dimensions
2500×1060×2650
Spindle motor
5.5HP
G.W / N.W
3600kgs / 3500kgs
Packing dimensions
270cm×112cm×255cm

Standard accessories:

1.Box shape worktable
2.taper sleeve
3.tool releasing wrench
4.drift
5.eyelet bolts

Optional accessories:

Optional accessories:
1.quick instead chuck
2.tapping chuck
3.grease gun
