x6325 Low Price Taiwan Head Turret Drill Vertical Milling Machine

  • 1 - 3 Sets
    $3,999.00
  • >=4 Sets
    $2,999.00
Table Size:
1270*254
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Table Travel (X) (mm):
780
Number of Axes:
3
Machining Capacity:
Medium Duty
Table Travel (Y) (mm):
400
Table Travel (Z) (mm):
500
Spindle Taper:
ISO30
Range of Spindle Speed(r.p.m):
1 - 4540
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
BoRUI
Model Number:
X6325
Table Travel (mm):
850*380*400
Type:
Vertical
Voltage:
Customer Requirement
Dimension(L*W*H):
1500 * 1600 * 2000
Certification:
CE Certificate
Weight (KG):
1450
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Key Selling Points:
Multifunctional
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Advertising Company
Local Service Location:
Japan, Malaysia, Australia, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Egypt, Canada, Turkey, United Kingdom, United States, France, Viet Nam, Philippines, Brazil, Indonesia, Pakistan, India, Russia, Spain
Showroom Location:
None
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
CNC or Not:
Normal
Work Table Size:
1270X254mm
T-slot No. and size:
3x16/65
Spindle taper:
R8/NT30
Table travel (manual):
800X400X415
Spindle travel(mm):
127mm
Ram travel(mm):
383mm
Auto quill feed:
0.04/0.08/0.15 mm/revolution
Table size:
1270*254mm
Power(W):
3
Product Certification certification
CE Certified.
Valid from 2018-01-15 until 2023-01-14
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
One miller per case: 1516x1550x2080mm Two miller per case: 1650x1790x2170mm Three miller case:1650x2285x2235mm
20GP==15sets
Port
Qing Dao / Shang Hai
Picture Example:
package-img
package-img
Video Description

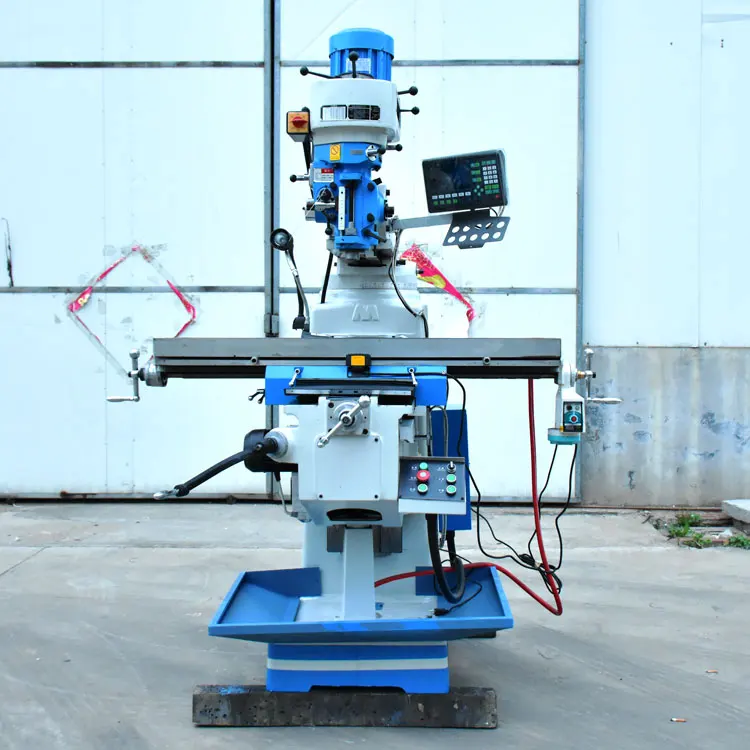

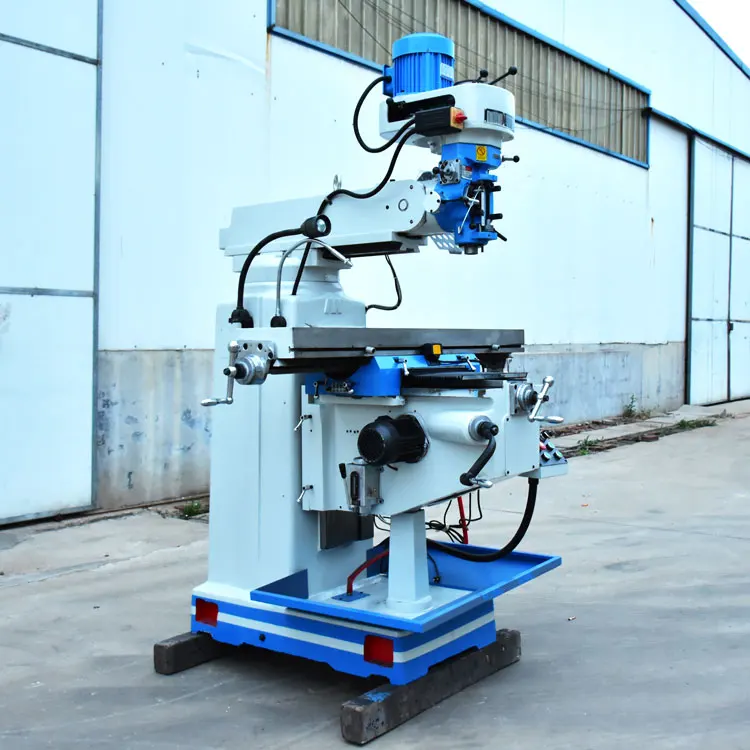

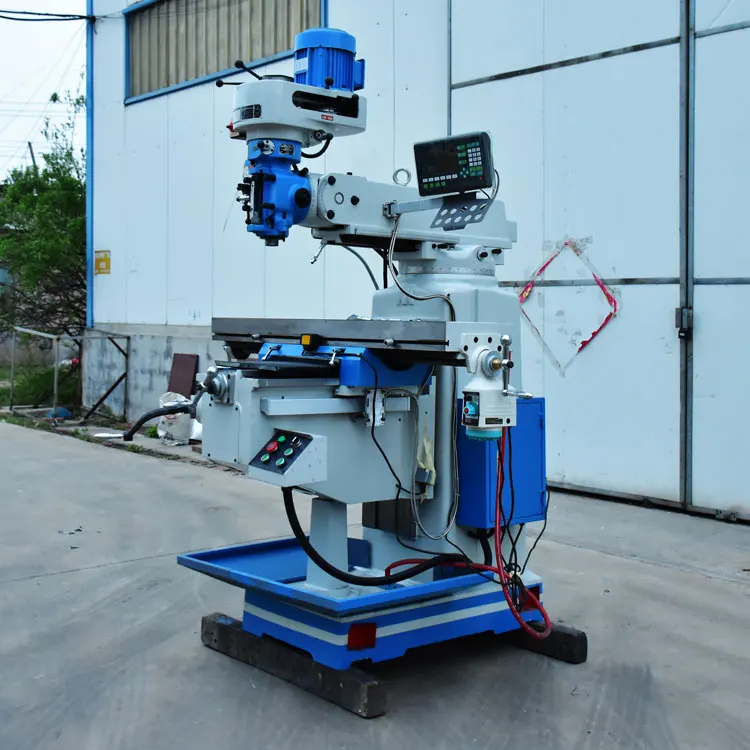

X6325 Vertical Turret Milling Machine
Product Description

The main performance characteristics::


1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after
fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline
etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Product main technical parameters:
pecifications
unit
X6325
Table size
mm
254x1270 / 254x1370
Longitudinal travel
mm
780 / 950
Transverse travel
mm
420 / 400
Vertical travel
mm
420
T slot no. and size
mm
3x16
Ram travel
mm
470
Distance from spindle nose to table surface
mm
0-405
Spindle taper

standard: R8

Optionl:ISO30/ISO40
Spindle travel
mm
127
Spindle speed
rpm
standard: (50HZ) 65-4500 16steps
optional: (variable)65-4500
Auto quill feed
mm/rev
0.04/0.08/0.15
Spindle motor
kw
2.2
Head swivel

90°
Head tilting

45°
Weight
kg
1200
Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
