vmc 1060 vmc1270 vmc1370 cheap 5 axis cnc vertical machining center vmc machine price for sale

  • 1 - 1 Sets
    $46,715.00
  • 2 - 2 Sets
    $42,715.00
  • 3 - 3 Sets
    $38,500.00
  • >=4 Sets
    $36,500.00
Model Number:
VMC1060
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Spindle Taper:
BT40
No. of Spindles:
Single
Type:
Vertical
Dimension(L*W*H):
3340*2800*2700mm
Weight (T):
7 T
Table Size (mm):
1200X600
CNC Control System:
GSK, FANUC, KND, Siemens
Number of Axes:
3
Table Travel (X) (mm):
1000 mm
Table Travel (Z) (mm):
600 mm
Positioning Accuracy (mm):
0.01
Repeatability (X/Y/Z) (mm):
0.004
Range of Spindle Speed(r.p.m):
20 - 8000 r.p.m
Spindle Motor Power(kW):
11
Max. Table Load(kg):
800 kg
Min. Time of Tool Change(s):
2
Tool Magazine Capacity:
16, 20, 24
Key Selling Points:
Competitive Price
Place of Origin:
Shandong, China
Brand Name:
BORUI
Certification:
CE CERTIFICATE
Voltage:
Customer
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Canada, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, South Africa, Ukraine, Uzbekistan
Showroom Location:
None
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Pressure vessel
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Vertical Machining Center
Color:
welcome customized
Table size:
1300*600
Spindle speed:
8000 Rpm
Precision:
0.004
three axis travel:
1000*600*600mm
Control system:
KND
Controlling Mode:
Cnc System
Product type:
Cnc 3 Axis Machine
Warranty:
1 Year
Table Travel (Y) (mm):
600 mm
Product Certification certification
CE Certified.
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
the vmc will be packed in plywood case,the vertical machining center
Port
qingdao port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated
Video Description
VMC1060 cnc milling machine vertical machining center
Product Description

Application:

High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.

Product main technical parameters:
specifications
unit
VMC1060
VMC1160
Table size
mm
1200x600
1200x600
Table maximum load
kg
800
800
X/Y/Z axis travel
mm
1000x600x600
1100x600x600
Distance between spindle
center and column surface
mm
650
650
Distance between spindle end
face and worktable surface
mm
120-720
120-720
X/Y/Z rapid feed
m/min
36/36/36
36/36/36
Cutting feed
m/min
1-10000
1-10000
Max. spindle speed
r/min
8000
8000
Spindle taper

BT40
BT40
Spindle motor
kw
11
11
X/Y/Z axis servo motor
kw
3/3/4.5
3/3/4.5
X/Y/Z guide rail form

linear rail
linear rail
Tools type

Arm 24
Arm 24
Machine dimension
mm
3340x2800x2700
3540x2800x2700
Machine weight
kg
7000
7400

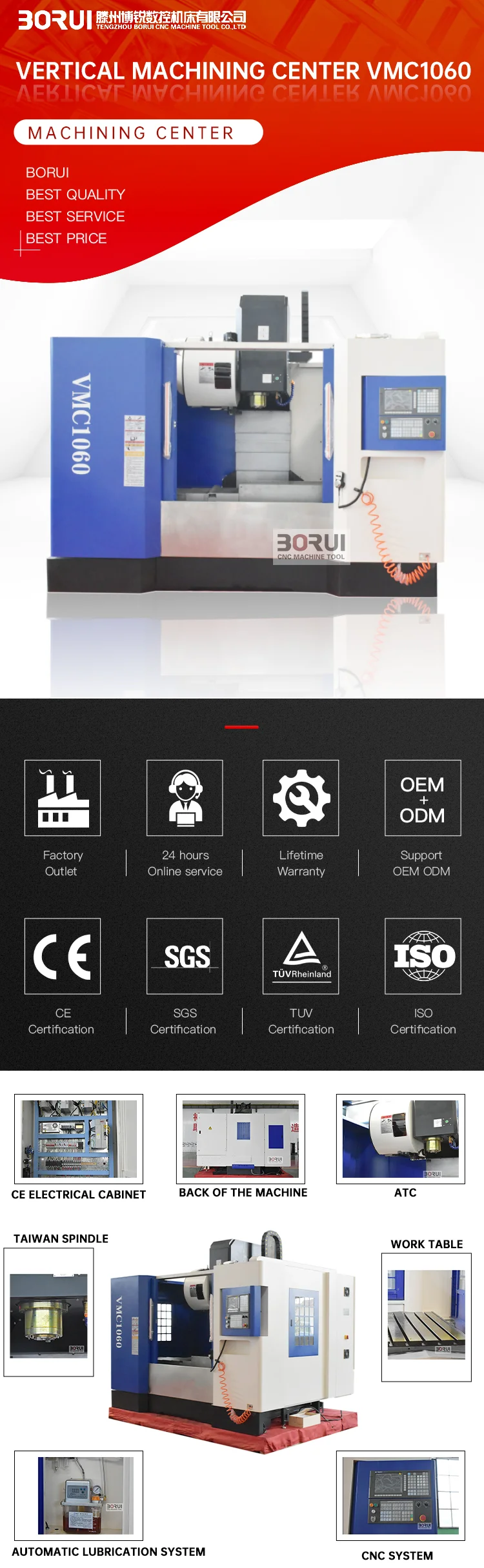

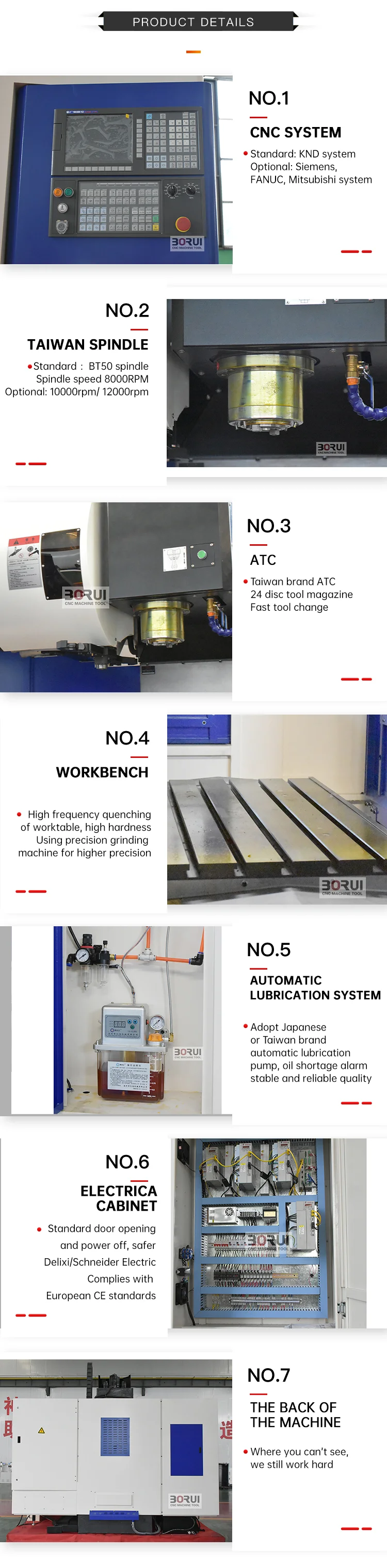

Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
