CK6140 tsugami cnc lathe automatic China torno metal

  • 1 - 1 Sets
    $12,900.00
  • 2 - 2 Sets
    $11,500.00
  • 3 - 3 Sets
    $11,000.00
  • >=4 Sets
    $10,700.00
Spindle bore:
105mm 52mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Structure:
Flat Bed Lathe
Condition:
New
Year:
2020
Max. Swing Diameter (mm):
400 mm
Max. Length of Workpiece (mm):
2000 mm
Max. Spindle Speed (r.p.m):
2000 r.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
48 m'm
Width of bed (mm):
400 mm
Spindle Motor Power(kW):
11
No. of Spindles:
Single
Max. Turned Length (mm):
1850
Number of Axes:
2
Travel (X Axis)(mm):
280 mm
Travel (Z Axis)(mm):
750 mm
Place of Origin:
Shandong, China
Dimension(L*W*H):
2000mmx1200mmx1620mm
Brand Name:
BORUI
Voltage:
Customer's Requirement
Certification:
ISO9001 CE
CNC Control System:
GSK
Toolpost Brand:
Hongda
Tool Post Stations:
6, 4
Weight (KG):
2000
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Key Selling Points:
High Productivity
Local Service Location:
Egypt, Canada, Philippines, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Malaysia, Australia, Argentina, Chile, Colombia, Bangladesh, South Africa, Kazakhstan, Uzbekistan
Showroom Location:
Egypt, United Kingdom, Viet Nam, Philippines, Peru, Indonesia, Mexico, Spain, Thailand, Morocco, Argentina, South Korea, Chile, Bangladesh, Kazakhstan, Nigeria, Malaysia
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pump, Gear
CNC or Not:
CNC
Spindle speed:
150-2000 r m p
Spindle bore:
48mm
Color:
Customized Option
Product type:
Flat Bed Machine
Control system:
SIEMENS GSK FANUC Optional
Tool post type:
4 station electic Tool carrier
Product Name:
CK6140 Small Flat Bed and Block Way Mini CNC lathe
Max. Swing Diameter:
400mm
Positioning Accuracy (mm):
0.01 mm
Repeatability (X/Y/Z) (mm):
0.005
Product Certification certification
CE Certified.
Valid from 2018-01-15 until 2023-01-14
Supply Ability
Supply Ability:
30 Set/Sets per Month CK6140 cheap cnc metal lathe machine low price with ce certifica
Packaging & Delivery
Packaging Details
plywood and one cnc lathe machine packaging size 3050*1620*1850 mm
CK6140 cheap cnc metal lathe machine low price with ce certificated
Port
qingao ,shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

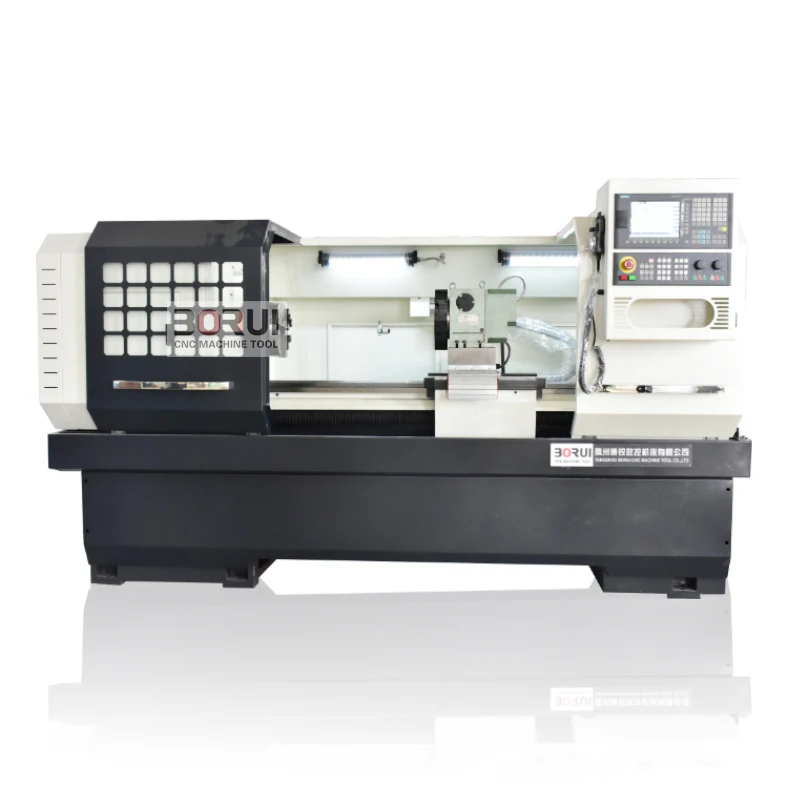

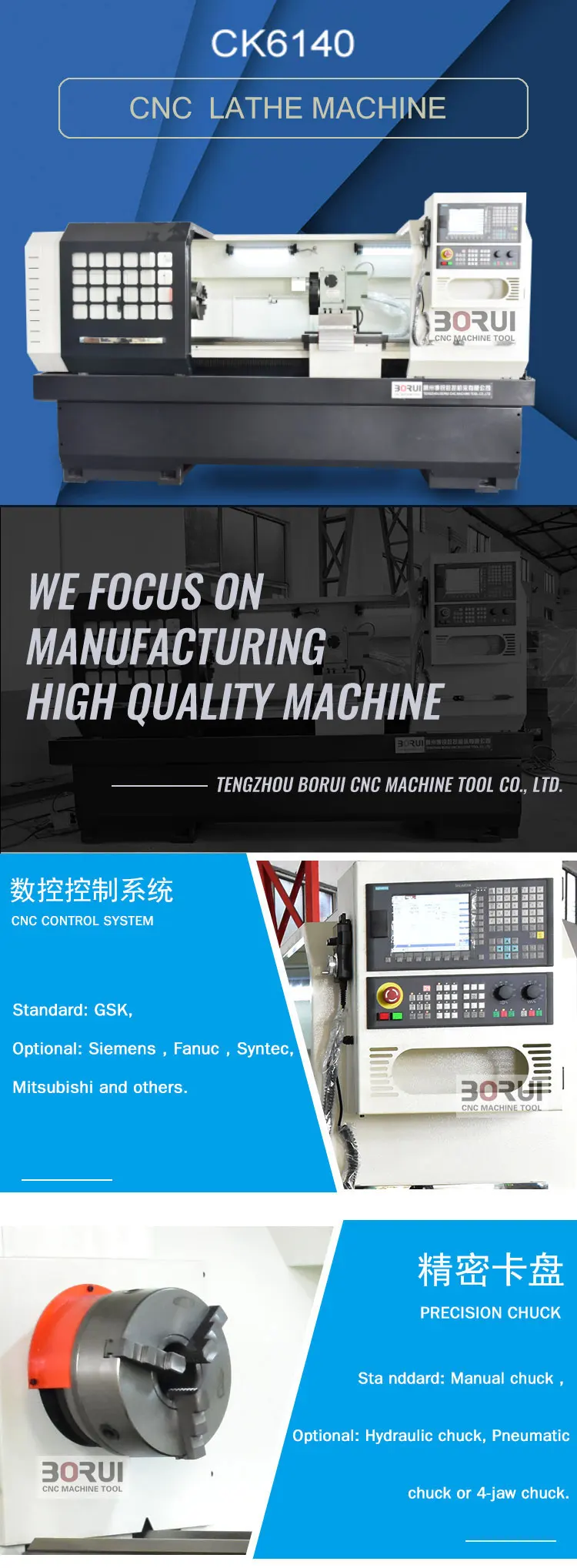

CK6140 Horizontal Flat Bed CNC Lathe
Product Description

Product description::

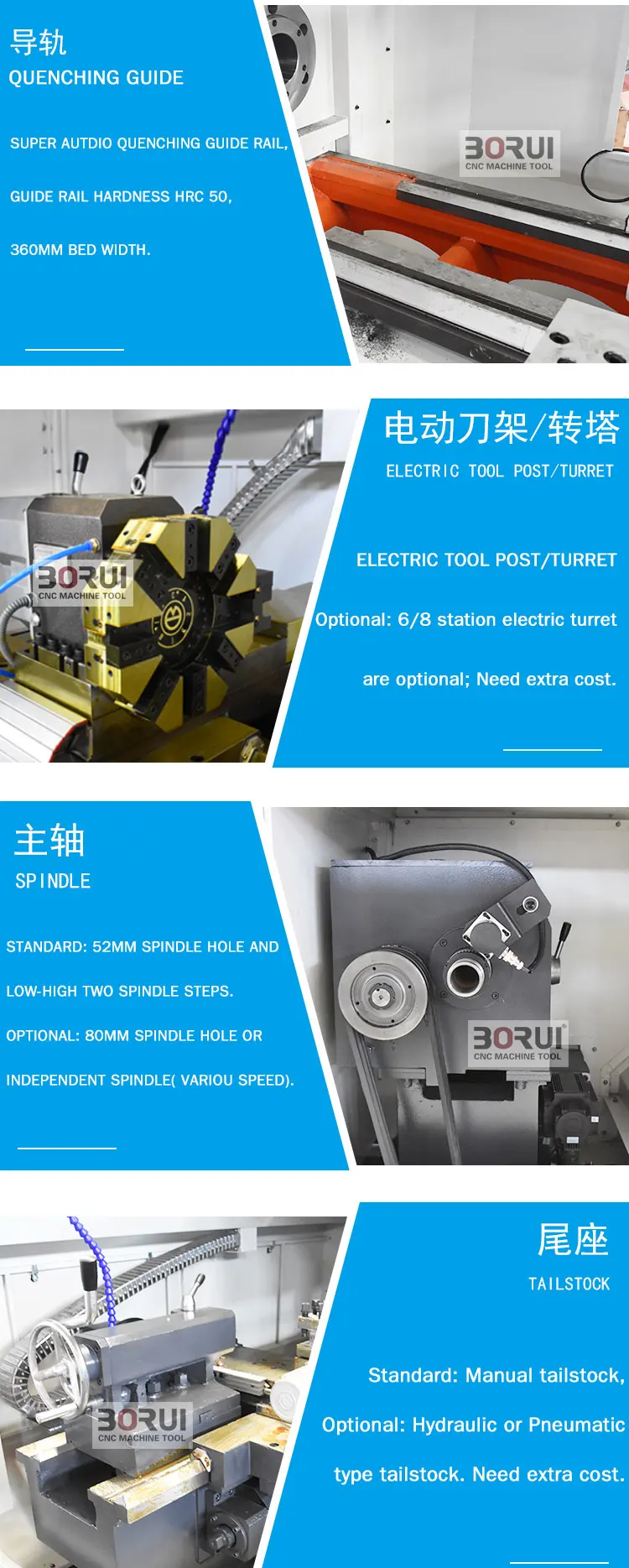

1. Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw
transmission, good dynamic performance, precision positioning.
2. The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.
Product main technical parameters:
MODEL
CK6140/1000
Max. Swing over bed (mm)
400
Bed width(mm)
360
Max. Swing over cross slide.(mm)
210
Max. length of work piece.(mm)
1000
Spindle bore (mm)
Φ52
Spindle taper
MT6
Power of the main motor (kw)
5.5
Spindle speed (rpm)
100-1600
Z axis screw dia. X pitch (mm)
Φ40X6
X axis screw dia. X pitch (mm)
Φ25X4
Tool position of the turret
4 (25mmx25mm)
Diameter of the tailstock(mm)
65
Working travel of the tailstock (mm)
130
Taper of the tailstock (mm)
MT4
Net weight (kg)
1400
Packing size (mm)
2480X1420X1660
Recommend Products
Details Display
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
