Horizontal CNC lathe Machine Flat Bed CNC lathe Machine

  • 1 - 1 Sets
    $11,240.00
  • >=2 Sets
    $11,200.00
Spindle bore:
52mm 82
Max. Swing Diameter (mm):
500 400 360
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Samples:
$99,999.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
TURNING CENTER
Condition:
New
Year:
new
Max. Spindle Speed (r.p.m):
1800 r.p.m
Machining Capacity:
Heavy Duty
Width of bed (mm):
400 mm
Spindle Motor Power(kW):
5.5/7.5
No. of Spindles:
Single
Max. Turned Length (mm):
1200
Number of Axes:
2
Travel (X Axis)(mm):
300 mm
Travel (Z Axis)(mm):
1500 mm
Place of Origin:
Shandong, China
Dimension(L*W*H):
2200x1640x1875mm
Brand Name:
borui
Model Number:
ck6150
Voltage:
380v/220v/410v
Certification:
CE
CNC Control System:
GSK
Toolpost Brand:
Hongda
Tool Post Stations:
4
Weight (KG):
3400
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works , Energy & Mining, Advertising Company
Key Selling Points:
Multifunctional
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria
Showroom Location:
None
CNC or Not:
CNC
Machine Type:
Flat Bed CNC Lathe Machine
Precision:
0.001mm
Spindle bore:
52mm
Control system:
SIEMENS GSK FANUC (optional)
Spindle speed:
100-4000rpm
Color:
Customized Option
Product type:
Cnc Horizontal Turning Lathe Machine
Max. Swing Diameter:
500
Spindle Bore(mm):
82 m'm
Max. Swing Diameter (mm):
500 mm
Max. Length of Workpiece (mm):
1350 mm
Positioning Accuracy (mm):
0.01 mm
Repeatability (X/Y/Z) (mm):
0.005
Product Certification certification
CE Certified.
Valid from 2018-01-15 until 2023-01-14
Packaging & Delivery
Packaging Details
plywooden case
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description

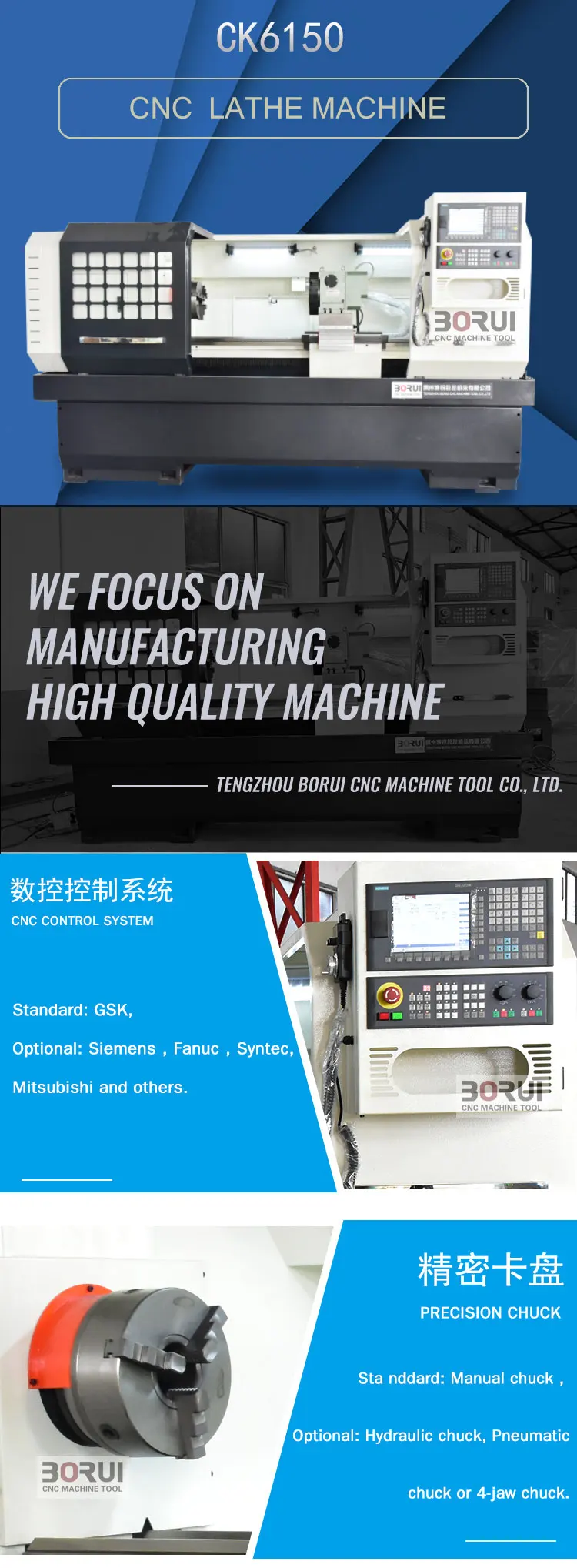

CK6150 Horizontal flat bed CNC lathe
Product Description

Product description::

1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw
transmission, good dynamic performance, precision positioning.
2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.
Product main technical parameters:
Machine Model
Unit
CK6150
Swing over bed
mm
500
Swing over cross slide
mm
260
Distance between centers
mm
750/1000/1500/2000
Spindle bore
mm
52(Optional 80)
Spindle bore taper
-
MT6
Spindle nose type
-
C6
Spindle speed steps
-
Manual 2 steps
Spindle speed range
rpm
L:100-500 H:500-1800 (Optional 90-1800 stepless)
Turret/tool post
-
Electric 4 position
Tool size
mm
25 x 25
X axis travel
mm
280
Z axis travel
mm
750/1000/1500/2000
X axis rapid traverse
mm/min
6000
Z axis rapid traverse
mm/min
8000
Tailstock quill diameter
mm
65
Tailstock quill taper
-
MT5
Tailstock quill travel
mm
130
Main spindle motor
kw
5.5
Coolant pump motor
kw
0.09
Weight for 750
kg
1800
Weight for 1000
kg
1900
Weight for 1500
kg
2000
Weight for 2000
kg
2100
Dimension for 750
mm
2200x1700x1750
Dimension for 1000
mm
2500x1700x1750
Dimension for 1500
mm
3000x1700x1750
Dimension for 2000
mm
3500x1700x1750
Product standard configuration:
No.
ITEM
Number
Standard configuration
1
Numerical control system
1/set
Optional system (gd980, Taiwan, FANUC, Siemens) etc.
2
Chuck
1/set
Three jaw chuck K11 250 (optional K11 320)
3
Tailstock
1/set
Manual tail base
4
X -ball screw
1/set
PRC
5
Z -ball screw
1/set
PRC
6
Electric turret
1/set
LD4B-A(6150)
7
X,Z-Lead screw bearing
1/set
PRC
8
X,Z- Coupling
1/set
PRC
9
Spindle bearing
1/set
PRC
10
Fuselage Casting
1/set
High quality resin sand casting
11
Spindle assembly
1/set
Assembly spindle
12
Spindle clamping
Manual chuck
13
Paint
1/set
Color can be configured according to customer requirements, not special requirements according to our standard color configuration
14
Lubrication
1/set
Joint venture (electric lubricating oil pump, lubricating oil circuit is installed)
Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
