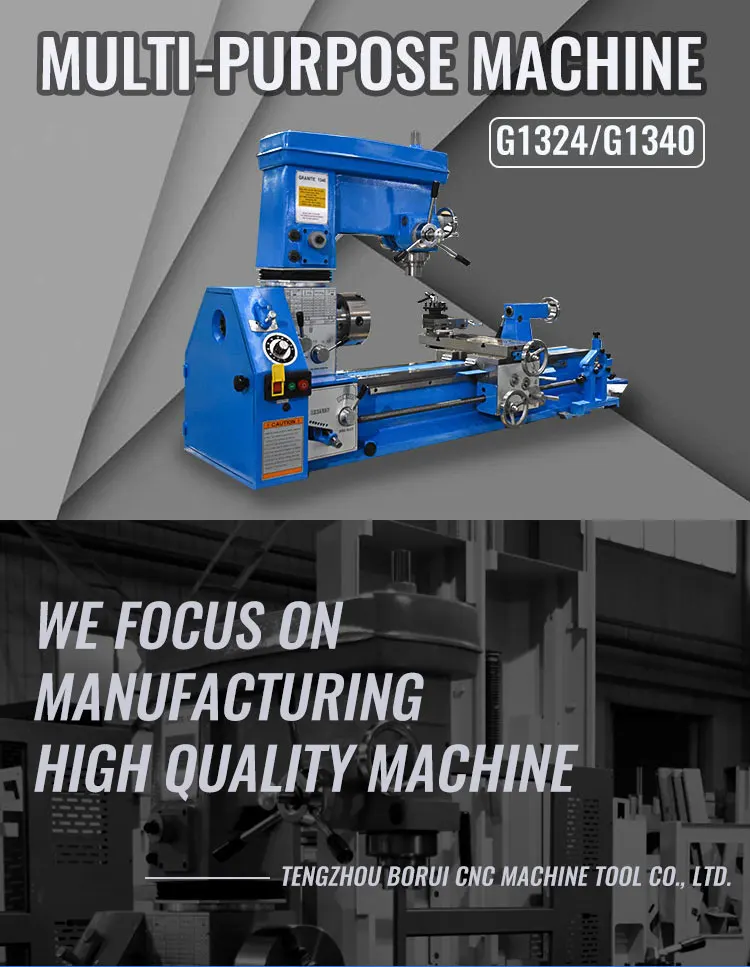

G1340 Combination Drilling Milling Lathe 3 in 1 lathe mill combo machine metal lathe small Granite

  • 1 - 1 Sets
    $3,100.00
  • 2 - 9 Sets
    $3,000.00
  • >=10 Sets
    $2,789.00
Max. Swing Diameter (mm):
330mm
Spindle bore:
28mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Samples:
$555,555.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Range of Spindle Speed(r.p.m):
50 - 3000
Machining Capacity:
Medium Duty
Width of bed (mm):
155
Max. Turned Length (mm):
900 mm
Type:
Multi-Purpose lathe Machine
Spindle Motor Power(kW):
1.1kw
Year:
2020
Place of Origin:
Shandong, China
Brand Name:
BORUI
Model Number:
G1340
Voltage:
Customer's Requirement
Dimension(L*W*H):
1650*570*1100mm
Certification:
CE ISO
Weight (KG):
380 KG
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Multifunctional
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Printing Shops, Energy & Mining, Food & Beverage Shops
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Turkey, United States, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Australia, Kenya, Argentina, South Korea, Chile, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Tajikistan
Showroom Location:
Egypt, Turkey, United Kingdom, United States, France, Germany, Philippines, Brazil, Pakistan, India, Morocco, Kenya, Argentina, South Korea, Colombia, South Africa, Kazakhstan, Kyrgyzstan, Nigeria, Tajikistan
CNC or Not:
Normal
Automatic Grade:
Automatic
Name:
Multi-Purpose lathe Machine
Spindle bore:
28mm
Spindle speed:
50-3000rpm
Machine Type:
Universal Lathe Machine
Function:
Machining Metal
Chuck:
3 Jaw Chuck
Power(W):
1.1KW
Max. Swing Diameter:
330mm
Max. Swing Diameter (mm):
330 mm
Spindle Bore(mm):
28 m'm
Max. Length of Workpiece (mm):
1000 mm
Product Certification certification
CE Certified.
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
tools venner package,case dimension of machine(L*W*H):1640*570*1100mm;case dimension of stand:Left stand:760*450*410,Right stand:760*450*350mm
Port
Qingdao and Shanghai port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

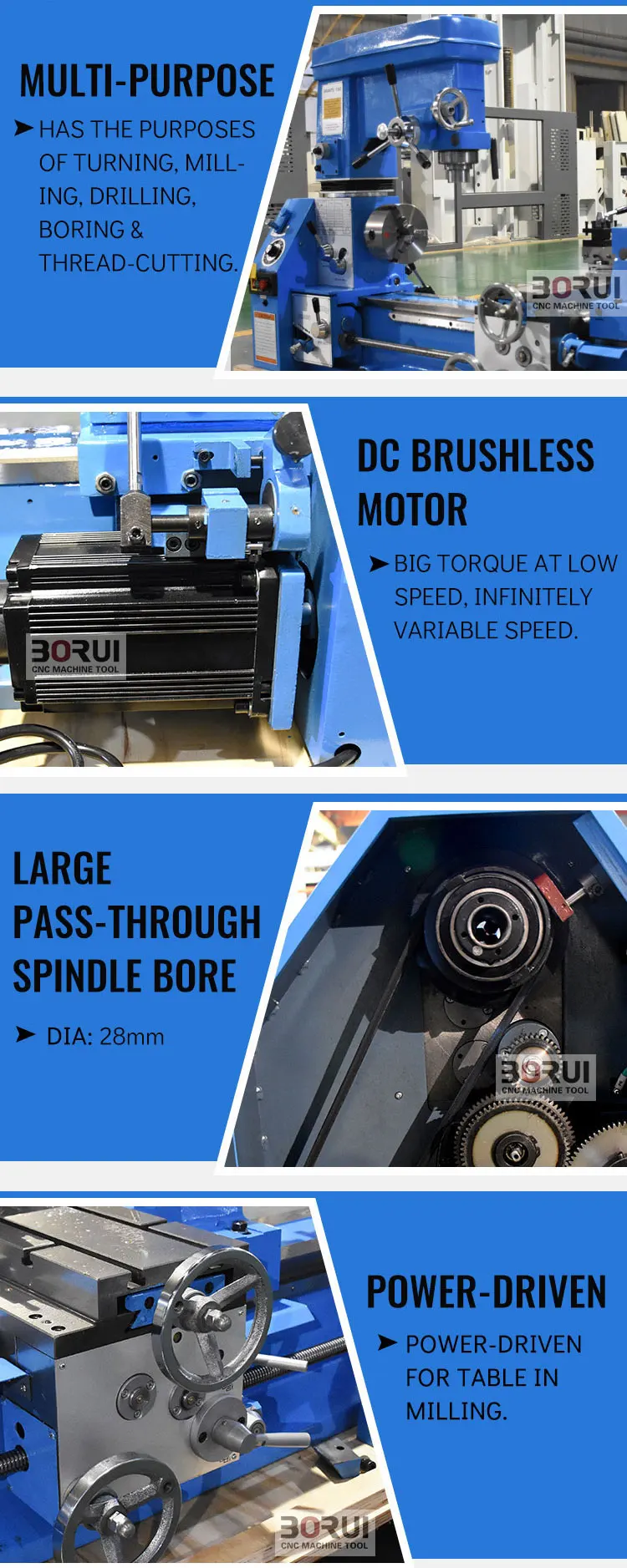

INTRODUCTION:

Has the purposes of turning, drilling, milling, boring & thread-cutting
DC brushless motor, big torque at low speed, infinitely variable speed
Power-driven for table in milling
Cam clamping chuck
Lengthened table

Features:

Has the devices of safety interlock & an overload safety
Lengthened drilling/milling box, 360 degree rotation in vertical plane
SPECIFICATIONS
G1324
G1340
Swing diameter over bed
330mm
13"
330mm
13"
Swing diameter over table
190mm
7.5"
190mm
7.5"
Distance between centers
610mm
24"
1000mm
40"
Spindle bore
28mm
1.1"
28mm
1.1"
Spindle speed (infinitely)
50-3000r/min
50-3000r/min
Longitudinal stoke
510mm
20"
890mm
35"
Cross stoke
185mm
7.3"
185mm
7.3"
Small toolpost stroke
70mm
2.75"
70mm
2.75"
Metric pitch/grade
0.35-6.5mm /24
0.35-6.5mm /24
Inch pitch/grade
7-52T.P.I/21
7-52T.P.I/21
Longitudinal feed/grade
0.067-0.5mm/r/21
0.067-0.5mm/r/21
Cross feed/grade
0.021-0.157mm/r/21
0.021-0.157mm/r/21
Milling-drilling spindle taper
MT3
R8
MT3
R8
Milling-drilling shaft stroke
127mm
5"
127mm
5"
Milling-drilling box stroke
110mm
4.33"
110mm
4.33"
Table size
450x170mm
17.7"x6.7"
450x170mm
17.7"x6.7"
Drilling dia.
24mm
0.95"
24mm
0.95"
Power of motor
1.1KW
1.1KW
N.W./G.W.
300/350kg
300/380kg
Overall Dimensions of machine(L*W*H)
1325x585x1030mm
1705x585x1030mm
Case dimensions of machine(L*W*H)
1260x570x1100mm
1640x570x1100mm
Case dimensions of stand(L*W*H)
left:760x450x410,
right:760x 450x350mm
left:760x450x410,
right:760x 450x350mm
