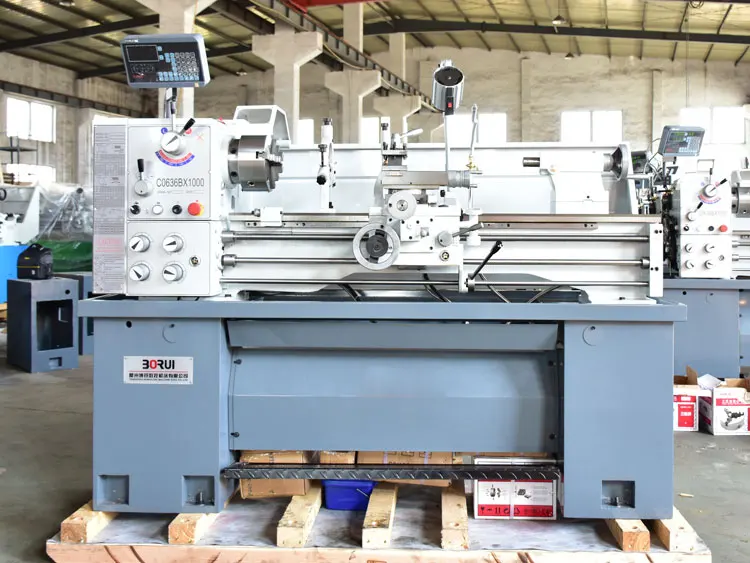

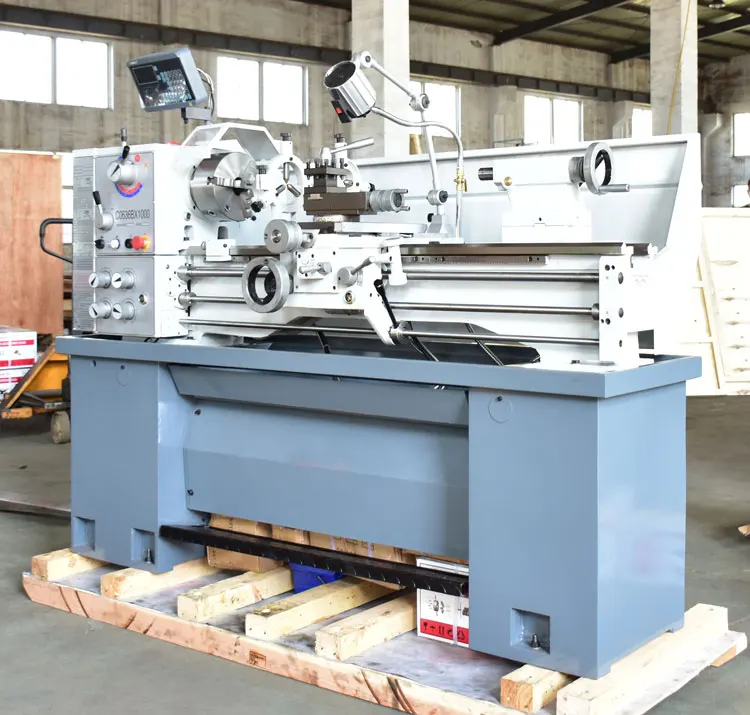

CQ6236 China Good Quality Universal Manual Medium Duty Horizontal Lathe Machine

  • 1 - 1 Sets
    $3,200.00
  • >=2 Sets
    $3,000.00
Max. Swing Diameter (mm):
330 360
Spindle bore:
38 51
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 16 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Samples:
$5,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Max. Swing Diameter (mm):
360 mm
Max. Length of Workpiece (mm):
1000 mm
Range of Spindle Speed(r.p.m):
65 - 1810 r.p.m
Machining Capacity:
Light Duty
Spindle Bore(mm):
52 m'm
Width of bed (mm):
218
Max. Turned Length (mm):
750 mm
Type:
Horizontal
Spindle Motor Power(kW):
1.5
Year:
new
Place of Origin:
Shandong, China
Brand Name:
borui
Model Number:
cq6236
Voltage:
380/410
Dimension(L*W*H):
2010x870x1560mm
Certification:
CE
Weight (KG):
670 KG
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Competitive Price
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location:
None
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure vessel, Engine
Name:
Lathe Machine
Machine Type:
Conventional Lathe
Product Name:
Manual Metal Lathe Machine
Product type:
Horizontal Universal Lathe
Keyword:
Universal Metal Lathe
Distance between centers:
1000
Function:
Metal Turning
Precision:
Precision
Spindle taper:
MT6
Product Certification certification
CE Certified.
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Port
QINGDAO PORT SHANGHAI PORT
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 16 To be negotiated
Video Description
Product Description

Application:

• variable speed as optional • Precision ground and hardened bed ways • The spindle is supported with precision roller bearings • Head stock gears are made of high quality steel ground and hardened • Removable gap is provided for larger diameter work • Easy operating gear box has various feeds and thread cutting function ` • Circular appearance as optional • Φ51mm big spindle bore as optional
Product main technical parameters:
specification
Item
CQ6232B×750/1000
CQ6326B×750/1000
Maching Capacity
Max.swing over bed
330mm
360mm
Max.swing over cross slide
198mm
212mm
Max.swing in gap
476mm
491mm
Max.length of workpiece
750or1000mm
Width of bed
187mm
Spindie
Spindie speed range
70-2000rpm pr 90-2000rpm
Spindie bore
Φ38mm or Φ51mm
Spindie nose
D1-4" or D 1-5
Taper of spindle bore
MT5 OR MT6
Center height
166mm
178mm
Thread cutting
Threads metric pitches
0.4-7mm/32kinds
Threads imperialpitches
4-56TPI/32kinds
Threads diametral pitches

Threads module pitches

Range of feeds
Compound rest travel
90mm
Cross slide travel
170mm
Max.section of tool
16×16mm
Longitudinal feeds range
0.052-1.392mm/rev/32kinds
Cross feeds range
0.009-0.253mm/rev(Metric lathe)0.015-0.402 in/rev(lich lathe)
Tailstock Sleeve
External diameter
32mm
Max.travel
100mm
Taper of bore
MT3
Motor
Mainmotor power
1.5KW
Coolant pump power
40W
Machine Dimensions
Packing size(L×W×H)
1950×750×1500mm
Net weight
550Kg/600Kg
Gooss weight
650Kg/700Kg
Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
