CK6180 Innovative new large machine metal computer controlled turning lathe cnc

  • 1 - 1 Sets
    $28,500.00
  • 2 - 2 Sets
    $25,500.00
  • 3 - 3 Sets
    $22,500.00
  • >=4 Sets
    $20,000.00
Spindle bore:
122
Max. Swing Diameter (mm):
800
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Structure:
Flat Bed Lathe
Condition:
New
Year:
2020
Max. Spindle Speed (r.p.m):
1200 r.p.m
Machining Capacity:
Heavy Duty
Width of bed (mm):
600 mm
Spindle Motor Power(kW):
11
No. of Spindles:
Single
Max. Turned Length (mm):
2850
Number of Axes:
2
Travel (X Axis)(mm):
450 mm
Travel (Z Axis)(mm):
1350 mm
Dimension(L*W*H):
4380x1780x1980
Brand Name:
BORUI
Model Number:
CK6180
Voltage:
220
Certification:
CE
Tool Post Stations:
8, 6, 4
Weight (KG):
6466
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Manufacturing Plant
Key Selling Points:
Competitive Price
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Tajikistan
Showroom Location:
None
Machine Type:
Flat Bed CNC Lathe
Name:
Metal Cnc Lathe
Function:
Machining Metal
Product type:
Economical CNC Lathe
Precision:
High Precision Machine
Control system:
SIEMENS GSK FANUC (optional)
Keyword:
Educational Lathe Cnc
Color:
Custom-made
Spindle speed:
150-2500rpm
Application:
DIY
Max. Swing Diameter (mm):
800 mm
Max. Length of Workpiece (mm):
3000 mm
Spindle Bore(mm):
105 m'm
Product Certification certification
CE Certified.
Packaging & Delivery
Packaging Details
The machine will be packed in plywood case
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

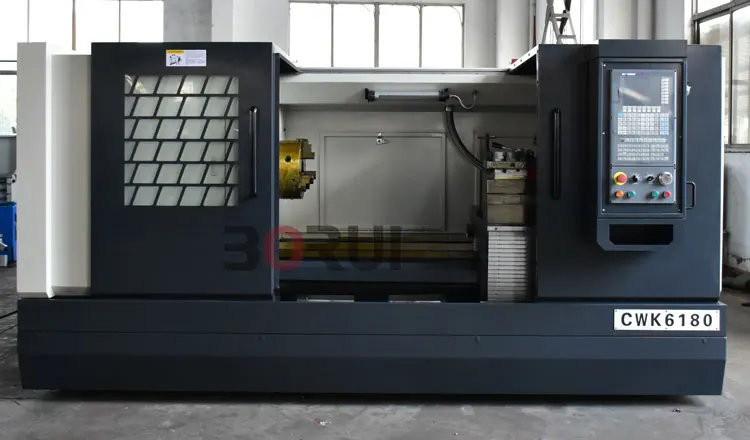

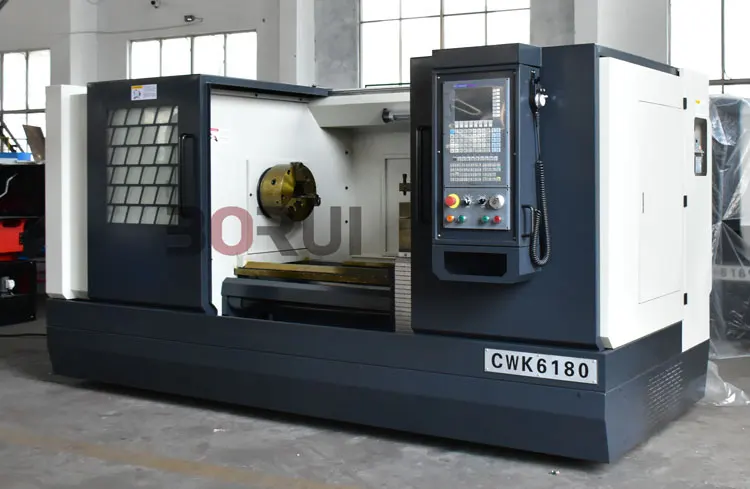

CK6180 CWK6180 CK61100 CWK61100 Larger Horizontal Flat Bed CNC Lathe
Product Description

Product description::

This machine is suitable to process the middle and large size work piece in steel,cast iron,non-ferrous metal material.with the feature of big power and high rigidity,this machine is applied to heavy-cut the inner circle,ex-circle,end surface and thread in both metric and English system,and could drill and bore the holes.
Product features:
Higher stability one-piece machine bed
3-gear spindle speed,step-less in gear
Higher rigidity pedestal
Wider layer board
Integrated automatic lubrication system

Product main technical parameters:
Main Technical Data
CWK6180
CWK61100
Max. Swing Over Bed
mm
800
1000
Bed Width
mm
600
Max. Swing Over Cross slide
mm
φ485
685
Max. Length of top
mm
1500(1350)/2000(1850)/3000(2850)
Spindle bore
mm
φ130
Spindle end connection type
D11 / 1:20
Main Motor Power
kW
11kw
Spindle Speeds
r/min
40-1200
Three shafts and three gears
Tailstock Diameter
mm
φ105
Tailstock working travel
mm
300
Tailstock taper
MT6
Tool Positions of the turret
2004/6/8
Positioning accuracy X axis
mm
≤0.03
Positioning accuracy Z axis
≤0.03
Machining accuracy
IT6-IT7
Machine size
mm
3380/4380/5380×1780×1960
Net weight
kg
4580/6466/8050

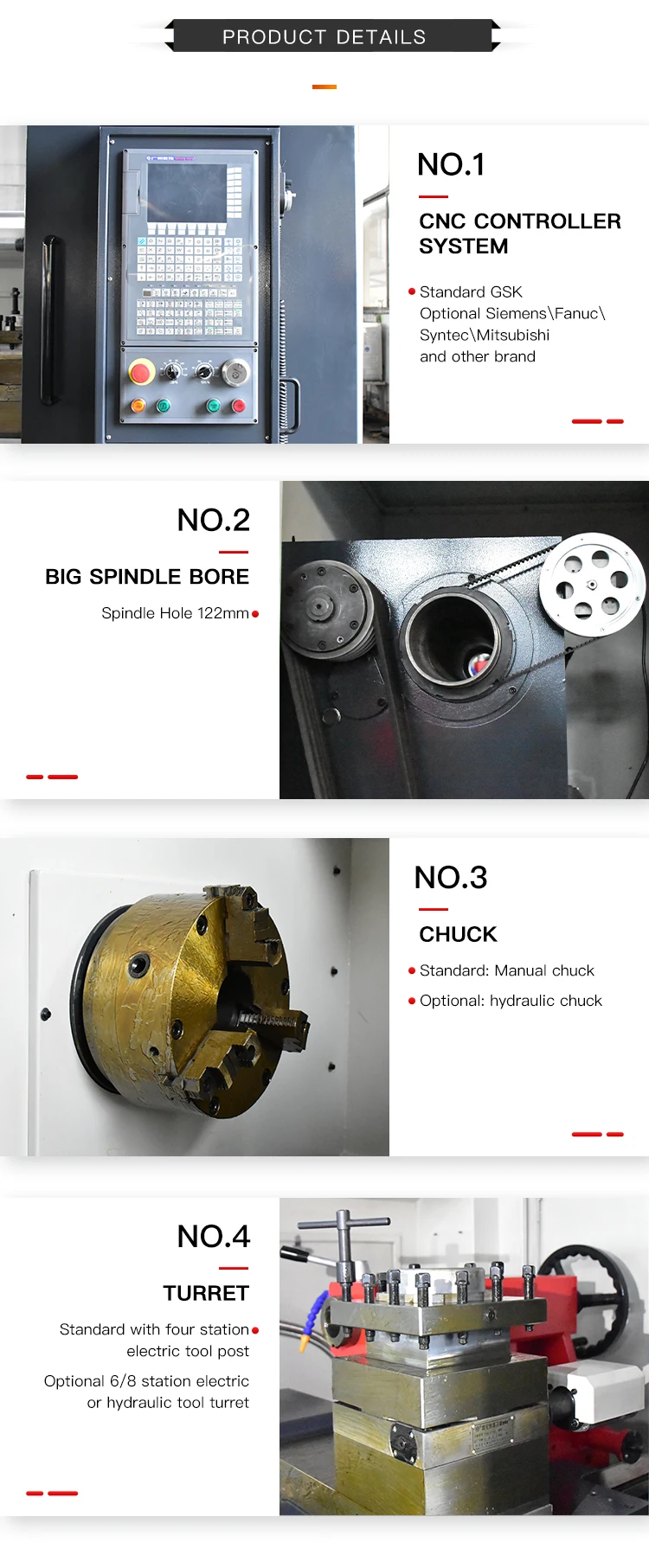

Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
